Design. Program. Control.

With JMobile Suite

JMobile-Architecture-Hero

JMobile is a framework which allows to create applications for Edge devices, HMIs, IOT gateways. With its easiness, JMobile Studio gives all the tools to design a frontend application for data Visualization.

It gives friendly editors to configure the backend with a huge list of OT Communication Drivers.

JMobile Runtime provides also IT Interfaces to integrate with standard data technologies. With a continuous focus on Security, JMobile provides all the features to Control an industrial machine, from Script to PLC programming.

Watch the webinar
Download the demo

Core Principles Behind JMobile Development

graph

Opening

to major fieldbus/communication protocols

monitor

Use of technology standards

open and recognized standards such as HTML5, SVG, XML

dashboard

Integration

selected market-leading 3rd party software with a seamless UI and extremely secure.

chipThese three principles working together offer EXOR International and our customers the best of all situations where the secure, solid JMobile backbone of highly critical software is able to contain and implement all the software required for Industrial IoT implementation.

Overview

Linux operating system

JMobile finds his best performance and usability in EXOR Hardware: based on Yocto Project, EXOR BSP (Board Support Package) provides an easy interface, reachable by a web browser, with a resume of all typical services needed to configure a device


jm1-01

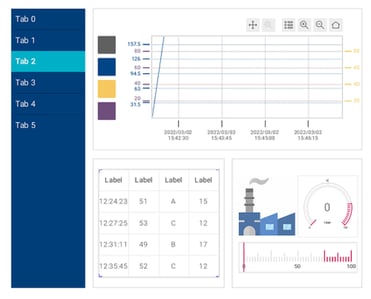

Visualization

JMobile gives all the tools to create user-friendly, modern and scalable HMI pages. Formulas and transformations bring easy ways to get cleaned information from row data. Completely customizable, vector SVG graphic supports a fast and resizable view, which matches the web HTML capabilities.



Machine operations

JMobile provides features to operate an industrial machine. Recipe management for set up parameters. Alarms visualization and acknowledging, trends and data loggers, to log and share operation data, over a user management with audit trails.



Dual use

JMobile is the perfect tool both for maximizing the end result with a quick learning curve using standard widgets and functions, and for a deeply customized experience by allowing scripting and custom widgets, with object-oriented programming.

jm5-011



OPC UA Compliance

OPC UA (Open Platform Communications Unified Architecture) is a secure, platform-independent, and scalable industrial communication protocol. JMobile supports it in client and server version. This feature, in combination with multi-protocol support, permits to provide OPC UA connectivity to all industrial devices, facilitating digitalization and revamping processes.
opc_ua



Soft-PLC

For connectivity, with a fully integrated soft PLC, JMobile permits communication to all I/O, Sensors, Motion devices via the significant protocols of PROFINET, EtherCAT, POWERLINK, EtherNet/IP, Modbus amongst many others. Available in two variants, CODESYS, well known market standard and XPLC, an EXOR solution for more tailored set of feature and higher performance.


jm7-01



Client/Server

JMobile has a Client/Server architecture, which allows a parallel access to pages. Together with User Management, this architecture allows to define a customized view and access profile of the HMI project, from any device type.

jm2-01-1



Industrial protocols

JMobile provides a huge list of OT industrial protocols. With its multi-protocol support, a single application can communicate with up to 8 different drivers and act as a protocol converter. A friendly symbol importer is included for any common industrial protocol, for a smooth programming, keeping interoperability between HMI and PLCs.

jm3-01-1

IT-OT connector

JMobile integrates seamlessly with IT technologies such as SQL databases, LDAP and Cloud via MQTT, as well as industrial protocols and data management. It is fully compatible with OPC UA standards.

jm4-01

Windows Runtime

JMobile Runtime can run Industrial PCs based on Windows. All JMobile features are available with the ability to utilize the computing power, flexibility, and expandability of a PC. Value, functionality, and price make JMobile PC Runtime ideal for replacing generic SCADA with a cost-effective solution.

jm6-01



MQTT

MQTT (MQ Telemetry Transport) is the publish/subscribe protocol designed for constrained devices and low-bandwidth, high-latency networks. JMobile allows to publish and subscribe tags coming from industrial protocol, over an MQTT generic interface, with an option to use MQTT Sparkplug B, which standardizes the protocol for industrial IoT, enabling efficient, state-aware communication. .
mqtt


3-layers

As the market moves toward increasingly complex web applications, JMobile is ready. JMobile's client-server architecture is already compatible with current HTML5 web technologies and uses a QT engine and Scalable Vector Graphics, JM4Web. This allows users to have advanced control and remote supervision from any browser and any device (smartphone, tablet or computer).

Read more

Try JMobile now

Download the complete JMobile suite and supporting materials.

Download the demo

Support

Watch the on-demand webinar on the basic functions of JMobile or explore the technical documentation, examples, and demonstration projects on our support page.

Webinar Support page

Talk to the experts

Fill out the form and an EXOR International representative will contact you to discuss the purchase of JMobile. This discussion can also address any associated needs you or your company may have regarding industrial hardware or IoT platform.

Request information
